Can somebody tell me on my 70 road runner which I’m sure should be the same as a 69 road runner where the main engine ground should be that I could check on it and I know there’s one by the battery that goes to the Radiator support. But I was wondering where the engine to frame or body is located pics would help thanks John


Basketcase

Keeper of the Green
Joined
Sep 10, 2008
Messages
14,415
Reaction score
299
all my B Bodies have had a ground from the right rear head to the firewall.


Basketcase

Keeper of the Green
Joined
Sep 10, 2008
Messages
14,415
Reaction score
299
alternator actually was my first thought. Is it overcharging?


dmartin

Well-Known Member
Joined
Aug 30, 2013
Messages
952
Reaction score
344
Location
Georgia
Just tighten up all hot leads and grounds scrape behind the ground connections make sure there’s no rust


Johnnyscarnuts

Johnnyscarnuts
Joined
May 4, 2019
Messages
421
Reaction score
261
Location
Tucson AZ
alternator actually was my first thought. Is it overcharging?
Not really I believe it was a little under 14, I’m thinking the alternator shorted out that terminal was loose but I think it became loose because the insulator melted a little bit?
Another thing I noticed was kind of peculiar to me was someone did a Her Tronics conversion and it still has the ballast resistor in the System ,
so I pulled out the instructions to the per Tronics because they left the box in the car with the points and everything that they took out and it says to leave it in there that it works with it.
which I thought you would want 12v not six or seven after being cut down from the ballast resistor or does the per Tronics wire up differently?

Last edited:

Johnnyscarnuts

Johnnyscarnuts
Joined
May 4, 2019
Messages
421
Reaction score
261
Location
Tucson AZ
all my B Bodies have had a ground from the right rear head to the firewall.

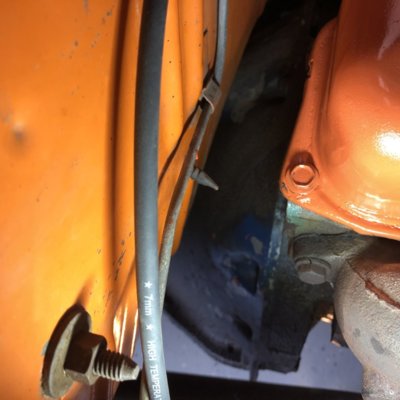

OK here’s a picture of the passenger side engine block trans area.
I don’t see any ground?

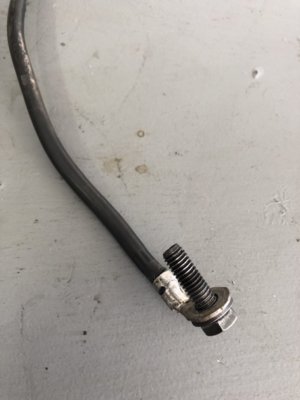

I was going to use this negative battery cable from the firewall to a trans bolt?

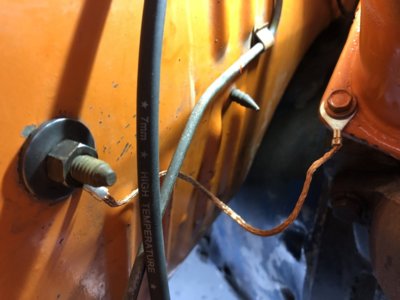

I put this valve cover to firewall ground also I put this valve cover to firewall ground also and I tested Both sides disconnected both ways

Last edited:

Russ69Runner

Well-Known Member
Joined
Aug 4, 2016
Messages
7,696
Reaction score
3,231
Location
Lake Wales Fl.
I would prefer one from a starter bolt to the battery or too the frame. Yes make sure all connections are clean. :thumbsup2:


Johnnyscarnuts

Johnnyscarnuts
Joined
May 4, 2019
Messages
421
Reaction score
261
Location
Tucson AZ

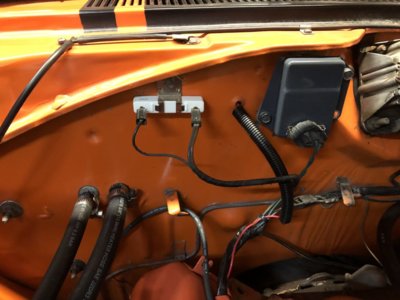

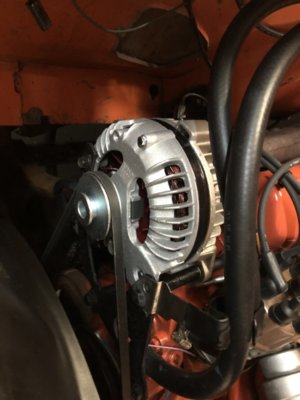

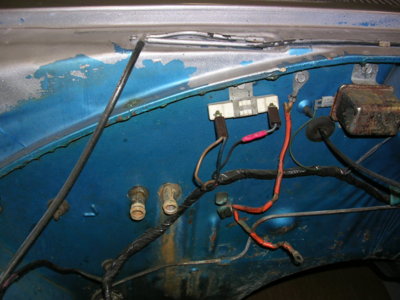

3105B7F1-EC59-41EA-980B-60524413AE2B.jpeg 5EAB13F1-2D1B-439E-91DA-F0E5713A2AF0.jpeg I have my New 1 Groove alt and voltage regulater and ballast resistor installed back to normal!
Charging fine 14 ish I still have an analog tester.
The ugly red wire is my ele choke wire
And no I didn’t drill a hole it was a plastic grommet hole that I put the wire through haha


Russ69Runner

Well-Known Member
Joined
Aug 4, 2016
Messages
7,696
Reaction score
3,231
Location
Lake Wales Fl.
Is their a rubber grommet around that wire if not I would put something their so the wire dose not chafe on the metal hole. Wires do move you know. Russ. :thumbsup2:


Johnnyscarnuts

Johnnyscarnuts
Joined
May 4, 2019
Messages
421
Reaction score
261
Location
Tucson AZ

69hemibeep

Sponge Bob Square Wheels
Joined
Sep 10, 2008
Messages
22,141
Reaction score
2,343
Location
AZ Desert,
The inverted hole in John's pic is used for a plastic nail that holds the firewall insulation up that someone repurposed it for a wire, so the grommet size would be a mystery.
