Gas Gauge Hook Up

bschomske

Well-Known Member
Joined
Jun 14, 2016
Messages
109
Reaction score
7
Location
Rochester, New York
I just had my car put back together after a total restoration.I was wondering how the gauge works in the dash.I have a new tank and sending unit but the gauge reads empty.I looked on the back of the gauge and I don't see any wires going to it.There are two post sticking out of the panel.I would think a wire must go there.Sorry I don't do electric or I would have figures it out..Well I guess thats what you get when the car goes back together Gremlins and I don't mean the car.My brother has one with a 327...I stay with "mopar or no car"................


Basketcase

Keeper of the Green
Joined
Sep 10, 2008
Messages
14,415
Reaction score
299

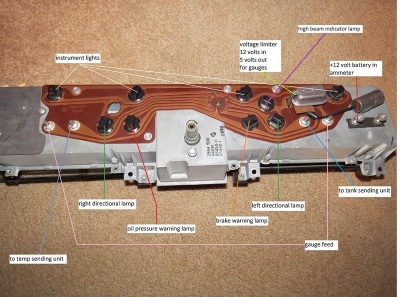

the gauges work off the printed circuit board on the back of the instrument cluster. check out the tech section, all the factory service manuals are there for the '69s.


mac

What ?
Joined
Sep 11, 2008
Messages
1,396
Reaction score
120
Location
lancaster, new york

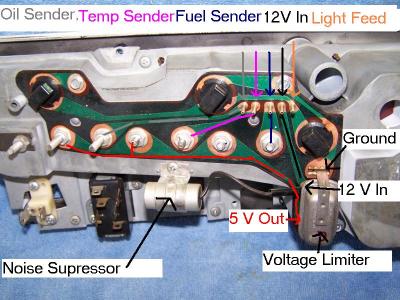

gauges all go to a circuit board and the back of the cluster and use a round multi pin connector to make things work.


Basketcase

Keeper of the Green
Joined
Sep 10, 2008
Messages
14,415
Reaction score
299
sometimes the little pins get loose or broken



Basketcase

Keeper of the Green
Joined
Sep 10, 2008
Messages
14,415
Reaction score
299
there's been a lot of people having trouble with the new sending units.


bigmanjbmopar

Well-Known Member
Joined
Feb 24, 2012
Messages
395
Reaction score
25
Did you confirm the ground strap was put in place at the sending unit / tank? I have a lot of experience with this issue lol. From the instrument cluster to the sending unit is sent 5+ vdc as the float moves up and down this varies the resistance on the circuit which causes the guage needle to move. but it can't work unless the sending unit has a ground to the chassis which is done via a ground strap that clips to the metal line before the rubber part on the fuel line and the fuel sending outlet unit itself.

Most of the time on these its a bad ground, unless you cluster was not gone through and you have a bad limiter or bad circuit board? or a bad pin.


RR383

Well-Known Member
Joined
Jan 30, 2016
Messages
358
Reaction score
1
Location
Tennessee
So a loose pin can be re-soldered? Or will it further damage the PC board and compound problems throughout the other circuits? On my '70 the only circuit not functioning is my temp gauge. Will be laying the cluster back this fall to dig deeper into my specific issue.

Last edited:

mac

What ?
Joined
Sep 11, 2008
Messages
1,396
Reaction score
120
Location
lancaster, new york
the circuit board is a possible problem which may or may not be your problem. the circuit needs to be looked at for any possible breaks or shorts. does the sending unit change values when activated? are all the connections clean and tight? these are things that will have to be determined with the individual situation.


RR383

Well-Known Member
Joined
Jan 30, 2016
Messages
358
Reaction score
1
Location
Tennessee
:bump:
Is the 70 board built with same concept as the 69? Central pin connector, etc.?


Basketcase

Keeper of the Green
Joined
Sep 10, 2008
Messages
14,415
Reaction score
299
yes...but the '70s had the Rallye style cluster that is different than the '68-'69.


dmartin

Well-Known Member
Joined
Aug 30, 2013
Messages
952
Reaction score
344
Location
Georgia
I just had my car put back together after a total restoration.I was wondering how the gauge works in the dash.I have a new tank and sending unit but the gauge reads empty.I looked on the back of the gauge and I don't see any wires going to it.There are two post sticking out of the panel.I would think a wire must go there.Sorry I don't do electric or I would have figures it out..Well I guess thats what you get when the car goes back together Gremlins and I don't mean the car.My brother has one with a 327...I stay with "mopar or no car"................

I had the same problem with my new gas gauge bout made me pull the rest of my hair out till I took my whole dash instrument panel out and started wiggling wires and it started working if the nuts on the back of the gas gauge are not tight and if the are not in the center of the contact circle it will show empty or not working
