Need help again identifing a part

[ArmyInspector]

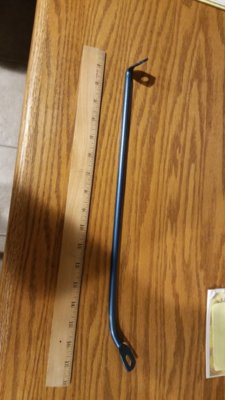

I have this support rod, Literally the last part to put on but I have no clue where it goes, lol.
Appreciate everyone's help.



[Big John]

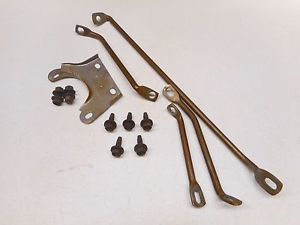

It goes under the dash and braces the brake/clutch pedal assembly



[Big John]



[Big John]

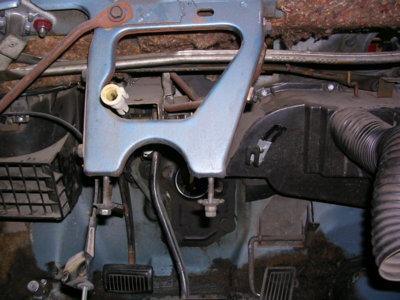

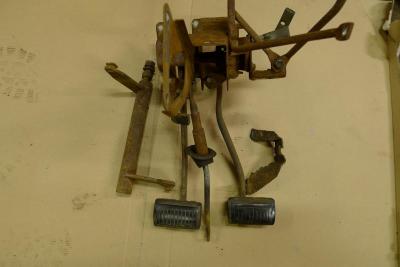

Best pic I can find with braces still mounted



[ArmyInspector]

thanks Big John



[ArmyInspector]

Did the other end attach to firewall or dash?



[ArmyInspector]

any pictures showing the brake pedal braces in place would be truly appreciated, I have an automatic car, thanks.



[Russ69Runner]

Their was a brace that went to the hinge pillar post on my car from the dash. It kind of looked like that. Hope I remember where it all goes when putting the dash and steering wheel back in. I don't remember if it went form the steering wheel bracket or to the dash it's self. Hope this help's my friend. Russ.



[quikbird]

should also be in the service manual showing where attaches



[Big John]

I can't remember exactly where it connects.

Bob might have a picture @69hemibeep



[Russ69Runner]

I will look and see if it is still hooked to my clutch pedal and brake to see if it is still hooked their or to the dash. Their was a brace that went to the steering column. Let you know what I come up with.



[ArmyInspector]

should also be in the service manual showing where attaches

went through the service manual twice, didn't find anything that showed the support rods, only for the master cylinder



[69hemibeep]

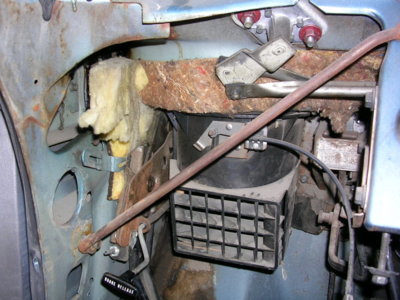

Goes from the kick panel area to the column support. also shows the old insulation glued to the cowl



[ArmyInspector]

sweet, thanks for the pic, that should be too easy to install



[ArmyInspector]

Man these rides are so much fun trying to put back together again.



[Russ69Runner]

Yep that is what I was saying it went to the hinge pillar post area. Glad Bob had a pic of it. Sorry to cold to go out side to day stayed inside. Going to try and get the pic down loaded for future. We forget so much when pulling them apart I did make a video maybe it will come in handy when putting it back in one piece.



[quikbird]

The more pictures taken during disassembly the better. Little bags CLEARLY labeled for bolts etc also big help



[Big John]

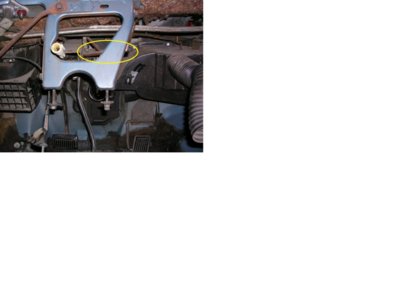

I was close. I thought it was this brace.



[ArmyInspector]

Now I need to make sure the other braces are in place, lol



[69hemibeep]

I was close. I thought it was this brace.

View attachment 25519

Why are you drawing on my car?
