Triplett and Scott carbine

pinkpanthr

Well-Known Member
Joined
Sep 17, 2013
Messages
259
Reaction score
0
Location
Kentucky

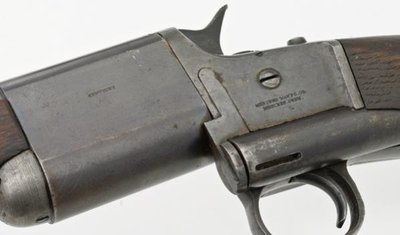

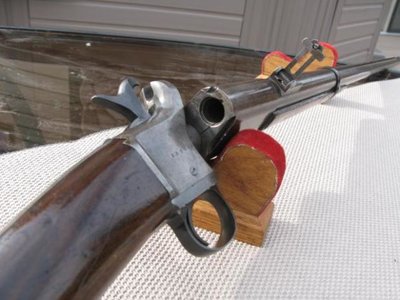

Anyone ever heard of these. I just recently acquired one from my mother in law and was wondering of the possible value. It is stamped on one side Kentucky and Meridian Manfg.co on the other. Has patent 1864 across the top of the stock. Has a seven round tube in the stock (which is cracked at the tube location) and a large bore (uncertain of the caliber) 30 inch barrel. It is a very neat gun. To reload you twist the barrel which expels the used round and then pushes a cover off the tube as it passes over to load another round. Then you twist back and its ready to fire. Don't have any pics of my own, but here are a few I found online.
Triplett and Scott 1.jpgtriplett and scott 2.jpgtriplett and scott 3.jpeg

Triplett and Scott 1.jpg

triplett and scott 2.jpg

triplett and scott 3.jpeg


inri

Well-Known Member
Joined
Jun 9, 2013
Messages
447
Reaction score
0
Rick from Pawn Stars will tell you its dirty and will offer you $12 for it!


gunnar

Well-Known Member
Joined
Apr 7, 2010
Messages
1,006
Reaction score
1
Location
MN
Very interesting gun. Unique action. Value would be somewhat dependent on condition. Bet it would be somewhere in the 1-2K range for value.


pinkpanthr

Well-Known Member
Joined
Sep 17, 2013
Messages
259
Reaction score
0
Location
Kentucky
Ok so here is what I've been able to dig up on this gun (from Gun Wiki)

The Triplett & Scott Carbine was an American Civil War era repeating rifle, designed by Louis Triplett and William Scott. Only 5,000 or so Triplett & Scott carbines were produced by the end of conflict, by which time Triplett & Scott's manufacturers lost interest in the design.

The Triplett & Scott was a rather unusual piece during its era, as virtually all of its contemporaries (ie the Maynard Carbine or Merrill Carbine) were single shot firearms. The Triplett & Scott, on the otherhand, was a repeating rifle holding seven shots in the magazine. The design itself consisted of a two parts, where the entire barrel, breech etc. would be attached to the stock (and other components) via a revolving hinge, which allowed the barrel to be twisted clockwise in order to allow the spent cartridge to be ejected. When this cartridge was ejected the barrel would be twisted further towards clockwise, releasing a spring latch which loaded the next cartridge. The barrel was then twisted anti-clockwise, locking the barrel in position for firing.

This design required the magazine, tubular in design, to be mounted within the buttstock. This presented two problems: firstly that the magazine could not be removed, meaning the shooter would have to reload the magazine with each cartridge one at a time; and secondly this design severely weakened the buttstock. The area around the wrist of the stock was almost entirely taken up by the magazine, leaving little wood joining it to rest of the stock, often causing the stock to snap under little stress.

Otherwise the Triplett & Scott was rather uniform to any other carbine of the era, with a blued, five groove rifled barrel and basic iron sights. The action resembled the familiar percussion lock design, although it had been modified so that the hammer would strike a firing pin, meaning that the Triplett & Scott could use metallic rimfire cartridges instead of the more familiar paper cartridges.

The Triplett & Scott was one of the few American Civil War era firearms that used metallic cartridges. Specifically the Triplett & Scott fired the large calibre .56-50 Spencer cartridge, which had been developed for the Spencer carbine. Another unique feature of the Triplett & Scott was the seven round magazine, located in the stock.
UsageEdit

The Triplett & Scott was a later comer to the American Civil War, so much so that the only troops to be issued with the carbine were home guard troops in Kentucky (whom protected supply lines). Despite the innovation in the design, the weaknesses the design created, particularly to the stock put its potential users off. These combined factors meant that the initial order of 5,000 firearms were delivered on the 1st May 1865, just over a month before the conflict ended.

This has meant that the Triplett & Scott, despite being one of the more innovative designs of the conflict, is not particularly sought after (even though surviving numbers are though to be in the tens). Modern day prices are around $1,500 on average.


gunnar

Well-Known Member
Joined
Apr 7, 2010
Messages
1,006
Reaction score
1
Location
MN
I would think a person would end up with carpal tunnel syndrome if they shot this thing much with all the wrist action involved.


pinkpanthr

Well-Known Member
Joined
Sep 17, 2013
Messages
259
Reaction score
0
Location
Kentucky
I would think a person would end up with carpal tunnel syndrome if they shot this thing much with all the wrist action involved.
I need to find some rounds cause I can't wait to shoot it. I think I'd be more worried about a dislocated shoulder rather than carpal tunnel though!
