Parking brake cable connection

Jack R

Well-Known Member
Joined
Nov 3, 2018
Messages
254
Reaction score
235
Location
Gilbert, Arizona

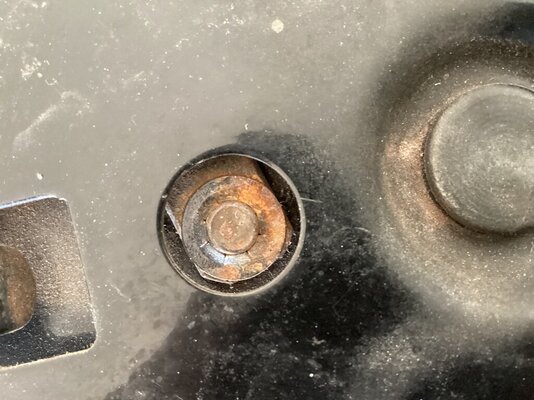

How is this parking brake cable clip/bolt/pin removed?

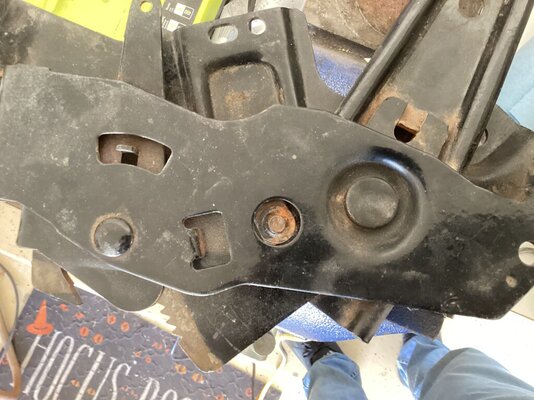

luckily have an extra park brake assembly that has this.




WWheeler

Well-Known Member
Joined
Mar 7, 2019
Messages
145
Reaction score
105

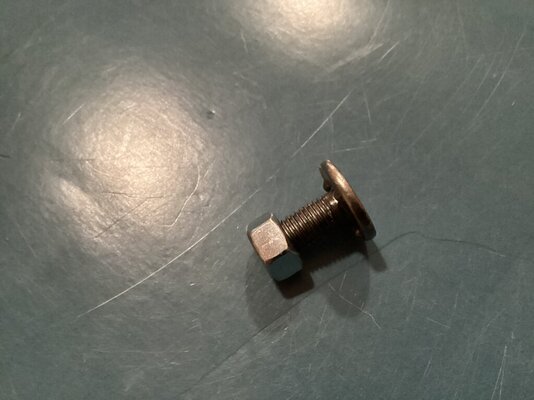

I am dealing with this same issue and unfortunately, my original fastener is long gone. They do not sell replacements that I can find. After some quick measurements, a 5/16" x 7/16" long shoulder bolt will do just fine. Add a 1/4 -20 nylon lock nut on the other end. Should be plenty of room. Eliminates the push nut. I had to order the bolt from Mcmaster Carr and about the same price as a 5/16" pin with a push nut.

If you have a good hardware store nearby, you might be able to find the pin. Push nuts are easy enough, it is the pin that could be difficult.


Jack R

Well-Known Member
Joined
Nov 3, 2018
Messages
254
Reaction score
235
Location
Gilbert, Arizona
I had a plan B. Then remembered I had another assembly in my part stash.
just shorten the thread and it will do the job. Can even get a socket through the access hole in the brake assembly. ACE Hardware again.



WWheeler

Well-Known Member
Joined
Mar 7, 2019
Messages
145
Reaction score
105
The only issue with plan B is that threads don't make a good bearing surface. Although in real life, how often will this P. brake be used in a year. That is why they used a solid pin from the factory or could use a shoulder bolt.


Russ69Runner

Well-Known Member
Joined
Aug 4, 2016
Messages
7,241
Reaction score
2,735
Location
Lake Wales Fl.
Got that locking washer through parts mix for my trunk tensor. He had some for other things also might just give them a call.
