under dash reverse light

[generaljmwlee]

since I converted to 4spd I have to add the reverse light can anyone so the location for the hole?



[generaljmwlee]

if not measurement ,maybe a pic or general area so it looks ok



[A31PKG]

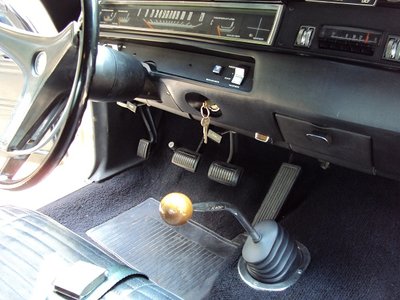

How's this?



[generaljmwlee]

it actually goes on the face not under is it tight to the pad or a gap?and about 2 inches to the left of the ash tray. man your a life saver was about to drill under it.



[mac]

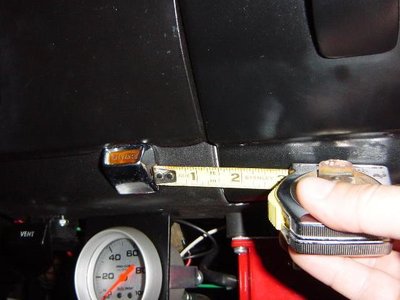

i found these pics if they help.



[mac]

and this one



[generaljmwlee]

you guys are awsome!!!!!!



[dobie]

Ill try to get a pic up tomorrow. Mine isn't installed, but the hole is drilled.



[generaljmwlee]

i found these pics if they help.

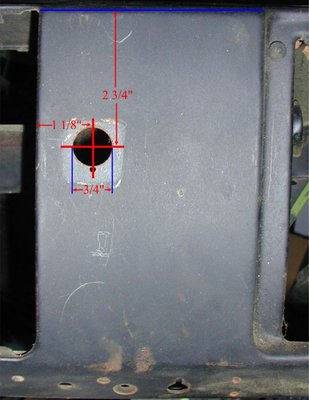

MAC just wondering if that 2 3/4 measurement is right, that puts me in the lower dash pad.
if I go 3 3/4 it puts it right under like the first pic.



[mac]

my car is in storage, so i can not confirm measurement. pic was found on moparts and was described as a B/E body location.
