68 harness doesn't turn on front running lights when headlights are on

Electrical and Ignition

  1. Rocket

    Rocket Well-Known Member

    Messages:
    288
    Likes Received:
    Joined:
    Jul 1, 2010
    I used a 68 wiring harness on my 69 and most of it is the same. I ran into some issues with the reverse lights and now the from running lights. When I turn the headlights on the front running lights turn off. I also noticed wire "Z" in the harness was attached to the 68 panel switch at the bottom. "Z" in a 69 is used for the interior reverse light switch so I took it out of the panel switch and it works great.

    This is really to document my findings - http://board.moparts.org/ubbthreads/showflat.php?Number=6645127 - this post explains it as well.


    The yellow tracer on the headlamp switch should be moved to where the green tracer was on the panel switch (harness "Z") I'm going to solder it now.

    Hopefully this helps the next guy switching harnesses.

    It worked perfectly.



    Thanks!

    John

    Last edited: Oct 25, 2014
  2. bigmanjbmopar

    bigmanjbmopar Well-Known Member

    Messages:
    385
    Likes Received:
    Joined:
    Feb 24, 2012
    Oh you're boned, lol no not really j/k the 69 has the 3 prong NSS to the starter relay and all power to lights goes through the turn signal switch, get a 68 wiring diagram and start there.

  3. Basketcase

    Basketcase Keeper of the Green

    Messages:
    14,386
    Likes Received:
    Joined:
    Sep 10, 2008
    yeah the '68s were designed to shut the parking lights off when the headlights came on.

  4. Budnicks

    Budnicks I will apologize to everyone in advance

    Messages:
    542
    Likes Received:
    Joined:
    Nov 9, 2013
    Location:
    Sonora Ca.
    This may help some

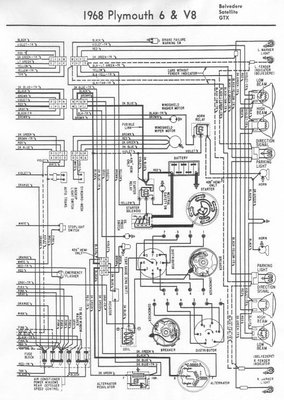

    Mopar 68 B-Body Wire Diagram 1968 Belvedere GTX Satellite RoadRunner Schmetic A.jpg

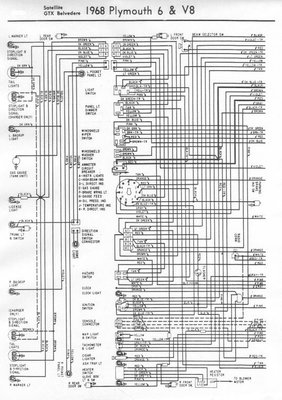

    Mopar 68 B-Body Wire Diagram 1968 Belvedere GTX Satellite RoadRunner Schmetic B.jpg

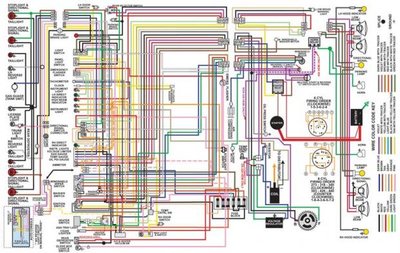

    Mopar 68 B-Body Wire Diagram 1968 Charger Belvedere GTX Satellite RoadRunner Schmetic color.jpg

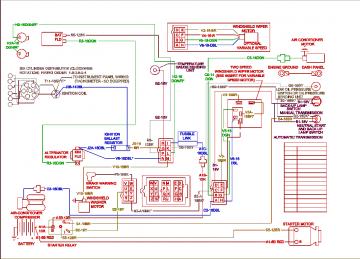

    Mopar 68 B-Body Wire Diagram Engine.jpg
