69 RR Fuel Line Install Questions:

[BigDaddy440]

So the fuel lines (main fuel line & return) seem pretty straight forward to install. I purchased a pre-bent along with the proper clips and other hardware needed for my restoration. I've mocked up the lines, and they seem to fit pretty well. I have a few questions before I begin installing the various types of clips that hold the lines in place and together.

Questions:

1) Which line, 5/16 or 1/4 runs closest to the ground / street? Based on the designed of the clip, I think the 5/16" line runs nearest to the ground but I thought I'd ask.

2) Both lines pass through the frame near the front of the car. Is there a rubber grommet that goes here or does the curved edge of this opening in the frame provide enough protection from fuel line damage?

3) The fuel line hardware kit came with two small clamp fasteners that attach with bolts. Can anyone share with me where these two fastners attach to the car? A picture would be great.

Thanks



[69hemibeep]

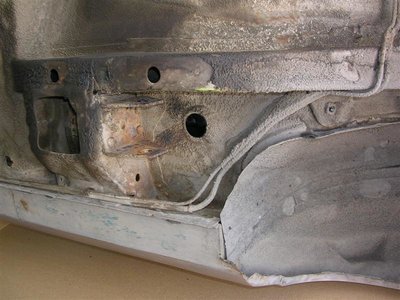

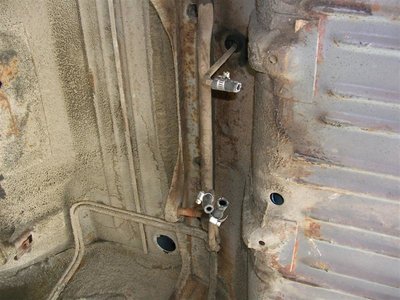

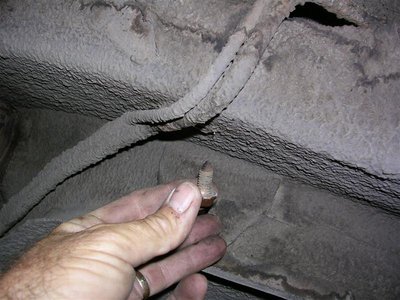

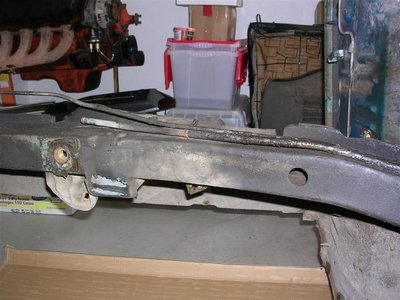

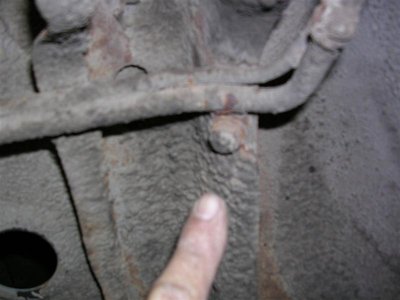

For the most part the large line is toward the bottom but they will cross in the turns some. No grommet in the frame and one clamp goes on the bottom of the frame rail near the rear wheel and the other on the shock support near the tank and you should have some sharp stabs along the floor pan and spring clips towards the engine bay.



[69hemibeep]

more



[Basketcase]

man look at those grimey hands......



[69hemibeep]

man look at those grimey hands......

Look at the grimey car, I expect Gary or Ray to chime in at any time :nachos:



[BigDaddy440]

Well a big thank you is in order! I appreciate your time in posting the pictures!

Thanks!

-Dan



[69hemibeep]

Well a big thank you is in order! I appreciate your time in posting the pictures!

Thanks!

-Dan

No problem, I have a pic or two hanging around
