Steering Coupling body

Suspension, Steering and Brakes

  1. Sixtynine_Bird

    Sixtynine_Bird Well-Known Member

    Messages:
    570
    Likes Received:
    Joined:
    Nov 30, 2014
    Location:
    France
    Hello guys, I am through the resto of my steering column and for the coupling body at the bottom I was wondering if I need a steering coupling clamp?

    I can't remember when I pulled the car apart if there where any clamp on it and can't find a pic when I remove it from the car...

    A little help on that would be really appreciate ;)

  2. ACME A12

    ACME A12 Plaid Sport Coat Wearing Moderator Staff Member

    Messages:
    12,933
    Likes Received:
    Joined:
    Nov 4, 2008
    Location:
    New Port Richey, FL

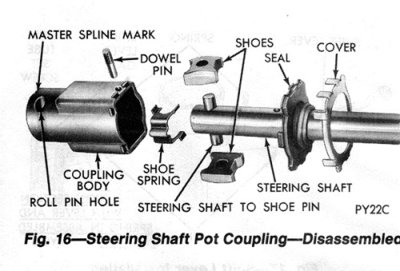

    See if this helps... Steering Coupler Pic.jpg

  3. Coyote

    Coyote Well-Known Member

    Messages:
    570
    Likes Received:
    Joined:
    Mar 6, 2016
    Location:
    Columbus, OH
    That for sure ought to do it! Commendable!:lowdown::thumbsup::beep:

  4. Sixtynine_Bird

    Sixtynine_Bird Well-Known Member

    Messages:
    570
    Likes Received:
    Joined:
    Nov 30, 2014
    Location:
    France
    Nice thanks for your time for those research ACME A12! :)

    I have found that pic when I google it, and that one too right below. And when I go on Yearone website or some other manufacturer like DMT I found that clamp that is shown on that pic. I should have post that pic at the first place.
    What do you think about that clamp?
    That is what I was talking about sorry for the miss-understanding.


    Thanks again guys

  5. ACME A12

    ACME A12 Plaid Sport Coat Wearing Moderator Staff Member

    Messages:
    12,933
    Likes Received:
    Joined:
    Nov 4, 2008
    Location:
    New Port Richey, FL
    You're welcome.

    It looks like the clamp in your photo is just a different means of securing the cover - as in I don't see any tangs on that cover that would be used to secure it. Use which ever version makes you more comfortable.

  6. Sixtynine_Bird

    Sixtynine_Bird Well-Known Member

    Messages:
    570
    Likes Received:
    Joined:
    Nov 30, 2014
    Location:
    France
    Ok thanks for that income. I'll see that once the coupling body will be rebuilt, at that time I'll be able to see if I have to put a clamp or not.

    Thanks again :)

  7. 69hemibeep

    69hemibeep Sponge Bob Square Wheels

    Messages:
    20,520
    Likes Received:
    Joined:
    Sep 10, 2008
    Location:
    AZ Desert,
    Interesting clamp, new to me!

  8. Sixtynine_Bird

    Sixtynine_Bird Well-Known Member

    Messages:
    570
    Likes Received:
    Joined:
    Nov 30, 2014
    Location:
    France
    So it means that it didn't exist back in the day when the runner came out from the factory? or other Mopar?

    Found that interesting cause this will hold everything in place firmly I guess. Just have to put the extremity in the roll pin then clamp it on top. Seems to be a good product. I'll let you all know if I put it on my bird ;)

    Thanks

  9. Roadcuda

    Roadcuda Well-Known Member

    Messages:
    10,340
    Likes Received:
    Joined:
    Sep 10, 2008
    Location:
    Rocky Hill, Ct
    I've seen that clamp before. I found that when I replaced the coupling body on my car I had trouble getting the tabs on the cover to hold the seal and body together. That is what that clamp is for, to help hold it together.

  10. halftrackman1

    halftrackman1 Well-Known Member

    Messages:
    46
    Likes Received:
    Joined:
    Jan 20, 2018
    Location:
    tn.
    Well , I put the mod. clamp on my 70 cuda, but it much have falling off, don,t know where it went. I bought a new cover and seal for my 70 challenger, I see no need for the clamp. rr and challenger/cuda same set up.

  11. Roadtrip

    Roadtrip Active Member

    Messages:
    39
    Likes Received:
    Joined:
    May 12, 2017
    Location:
    Alberta
    Old post I know, but the clamp is to hold the cap in place while you bend the tangs over on the top cap of the coupler

    Russ69Runner likes this.
