69 convertible boot

General Discussion

  1. Randy Pomfret

    Randy Pomfret New Member

    Messages:
    3
    Likes Received:
    Joined:
    Aug 8, 2018
    Hello friends,
    I bought a boot from Legendary and cant figure how it attaches to the back seat. There is a channel but I thought it was for the fabric that isolates the trunk. Any help or picture of how it should look would be greatly appreciated.
    Thanks

  2. Big John

    Big John Sit back, relax Don't bitch about the cigar smoke

    Messages:
    5,040
    Likes Received:
    Joined:
    Sep 8, 2008
    I believe it attaches just like my '70 300 boot.

    Look on the back of the seat. There should be a chrome strip with a slot in it running the length of the seat. On the front of the boot, there is a piece of round rubber sown to the edge.

    Slide the rubber into the slot from the side. It takes a little patience, but if you go slow it will go easy.

    Again, this is how my 300 vert is set up, and I never owned a B-body vert, so I'm just assuming.

  3. droptop

    droptop Well-Known Member

    Messages:
    3,536
    Likes Received:
    Joined:
    Sep 11, 2008
    Location:
    Southern Indiana
    Big John nailed it.

  4. RonLiv

    RonLiv Well-Known Member

    Messages:
    498
    Likes Received:
    Joined:
    Dec 7, 2017
    I'll try and get a picture. I have to leave town possibly tomorrow so it may be a week before I get to it. I store the car off site

  5. Randy Pomfret

    Randy Pomfret New Member

    Messages:
    3
    Likes Received:
    Joined:
    Aug 8, 2018

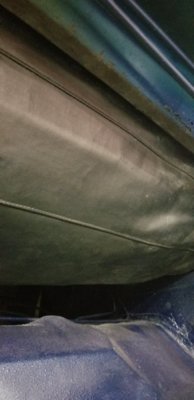

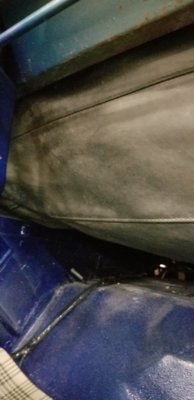

    Thanks, a picture would help greatly. Please try to show the fabric below the boot if possible, I believe I am missing the piece that connects it to the seat.

  6. RonLiv

    RonLiv Well-Known Member

    Messages:
    498
    Likes Received:
    Joined:
    Dec 7, 2017



  7. RonLiv

    RonLiv Well-Known Member

    Messages:
    498
    Likes Received:
    Joined:
    Dec 7, 2017

  8. RonLiv

    RonLiv Well-Known Member

    Messages:
    498
    Likes Received:
    Joined:
    Dec 7, 2017

  9. RonLiv

    RonLiv Well-Known Member

    Messages:
    498
    Likes Received:
    Joined:
    Dec 7, 2017

  10. RonLiv

    RonLiv Well-Known Member

    Messages:
    498
    Likes Received:
    Joined:
    Dec 7, 2017

  11. Randy Pomfret

    Randy Pomfret New Member

    Messages:
    3
    Likes Received:
    Joined:
    Aug 8, 2018

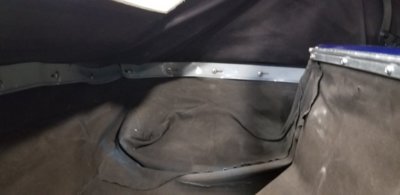

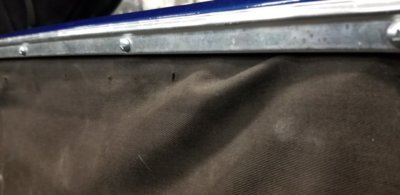

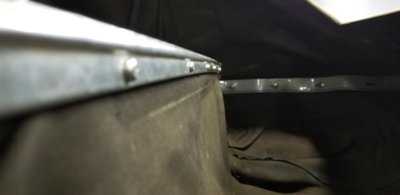

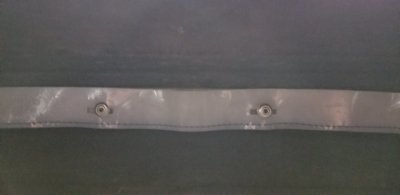

    Thank you for your help. I am missing that piece of track. It looks simple enough, now to find one!

    RonLiv likes this.
  12. RonLiv

    RonLiv Well-Known Member

    Messages:
    498
    Likes Received:
    Joined:
    Dec 7, 2017
    Good luck! Could be easy enough to make or find something.
