How to Replace Turn Signal Switch and Harness

Electrical and Ignition

  1. ykf7b0

    ykf7b0 Well-Known Member

    Messages:
    145
    Likes Received:
    Joined:
    Dec 7, 2010
    Location:
    Tennessee
    I'm needing to souce and install a new turn signal switch with harness into my 69 with floor shifted automatic trans. What does this process involve after removing the steering wheel? Should I remove entire column or can I remove the upper collar and complete the job?

    Last edited: May 31, 2019
  2. quikbird

    quikbird Well-Known Member

    Messages:
    2,511
    Likes Received:
    Joined:
    Mar 1, 2014
    Location:
    columbus, ohio
    Getting the wiring down the column is fun. Take pictures as you go you can put it back together correctly

  3. 69hemibeep

    69hemibeep Sponge Bob Square Wheels

    Messages:
    20,551
    Likes Received:
    Joined:
    Sep 10, 2008
    Location:
    AZ Desert,

    Last edited: Jun 2, 2019
    ykf7b0 likes this.
  4. ykf7b0

    ykf7b0 Well-Known Member

    Messages:
    145
    Likes Received:
    Joined:
    Dec 7, 2010
    Location:
    Tennessee

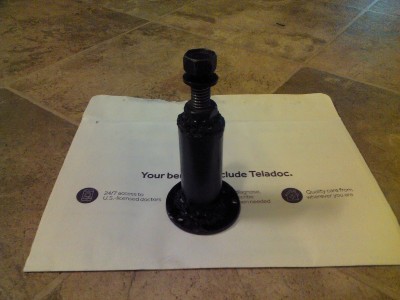

    I tried for hours to remove the upper collar then I went to Harbor Freight and bought a really cheap mig welder and fabbed up a removal tool similar to the Miller C-4044. Only with the tool was I able to remove the upper collar. I already dread the reassembly step of locking the upper and lower collars to the shaft with the (2) weird headed bolts.

  5. 69hemibeep

    69hemibeep Sponge Bob Square Wheels

    Messages:
    20,551
    Likes Received:
    Joined:
    Sep 10, 2008
    Location:
    AZ Desert,
    Ive done a couple and never had them hold like that. Now you have the tool and a welder.

    ykf7b0 likes this.
  6. ACME A12

    ACME A12 Plaid Sport Coat Wearing Moderator Staff Member

    Messages:
    12,939
    Likes Received:
    Joined:
    Nov 4, 2008
    Location:
    New Port Richey, FL
    Not sure if you have already purchased a new switch or not, but here is where I got mine. Made by one of the original Chrysler suppliers.
    https://www.forbbodiesonly.com/mopa...itches-for-62-63-64-69.172312/#post-911249493
    Dan is easy to deal with and he ships product out quickly. You must pull your terminals from the original connector and reuse the connector.

    Those weird, square headed bolts are indeed a pain. IMHO It makes pulling the column out worth it just so you can work on it in the vertical orientation and have gravity do some of the work (properly catching the slots on the outer shaft) for you. You must have some experience with this as you have already noted that they are a PITA, but just FYI or as a reminder, slowly tighten side to side. Tighten too much on one of the nuts and you'll lose the bolt head catching the other side of the outer shaft.

    ykf7b0 likes this.
  7. ykf7b0

    ykf7b0 Well-Known Member

    Messages:
    145
    Likes Received:
    Joined:
    Dec 7, 2010
    Location:
    Tennessee
    Thanks ACME A12 and sorry for the slow follow up but I did get the new switch and harness in. I am also happy to report that I got the weird headed bolts in and secured. I am driving the road runner again with all 4 corners blinking and brake lights work too!

  8. Russ69Runner

    Russ69Runner Well-Known Member

    Messages:
    3,571
    Likes Received:
    Joined:
    Aug 4, 2016
    Location:
    Lake Wales Fl.
    Nothing worst than your friendly police officer stopping ya to give you a light out warning. :lol:

  9. Basketcase

    Basketcase Keeper of the Green

    Messages:
    14,384
    Likes Received:
    Joined:
    Sep 10, 2008
    shoulda saved your self some trouble. nobody around here uses their turn signals...not even the cops.

    Russ69Runner likes this.
  10. dmartin

    dmartin Well-Known Member

    Messages:
    799
    Likes Received:
    Joined:
    Aug 30, 2013
    Location:
    Georgia
    Yeah the new cars come with an option package either you want the stereo or turn signal, around Atlanta they use their finger and the radio

    Russ69Runner likes this.
  11. Denny

    Denny 69 Mopar

    Messages:
    7
    Likes Received:
    Joined:
    Apr 26, 2019
    Location:
    Mason City, Iowa USA
    Been working on the dash; turn signals work, brake lights work; flashers only work in the rear. But when I turn on the headlight switch, both green turn signal indicator lights come on steady. When I turn on the key, nothing comes on. But it starts.

  12. Rich B

    Rich B Well-Known Member

    Messages:
    161
    Likes Received:
    Joined:
    Jun 23, 2019
    Location:
    Minot, ME
    Wouldn’t believe how a house operates when neutral is lost and everything returns to 0 potential through the grounds and bonds. Sounds as perhaps a shorted selector switch and circuits are completing through series any way they can. Electrical takes the easiest route it can to complete loop.

  13. Russ69Runner

    Russ69Runner Well-Known Member

    Messages:
    3,571
    Likes Received:
    Joined:
    Aug 4, 2016
    Location:
    Lake Wales Fl.
    Holly cow bat man its a TABOCKEL. Sound's like something is grounding out some where. Might have to check the wiring block on the fire wall. :thumbsup2:

  14. Denny

    Denny 69 Mopar

    Messages:
    7
    Likes Received:
    Joined:
    Apr 26, 2019
    Location:
    Mason City, Iowa USA
    Thanks Rich B and Russ69Runner.

  15. Russ69Runner

    Russ69Runner Well-Known Member

    Messages:
    3,571
    Likes Received:
    Joined:
    Aug 4, 2016
    Location:
    Lake Wales Fl.
    Yes what he means is the eases path to ground or another hot wire. I remember a car I had the tail light would come on and the blinker would blink. Found a short in the wiring in the back tail light wiring. It is like a ghost to find these thing's sometimes. The loss of a proper ground can also cause many problem's. Can't say about how to replace turn signal switch but it can not bee that hard. Take pic's when removing every thing. Know you got to pull the steering wheel have seen problems with the wiring harness in the steering column before also. Wish you luck and hope it turns out to be something simple. Russ.

  16. dmartin

    dmartin Well-Known Member

    Messages:
    799
    Likes Received:
    Joined:
    Aug 30, 2013
    Location:
    Georgia
    I had pretty much the same problem put new turn signal switch in problem solved but only thing is if you have your arm out the window and blow the horn you will get shocked I don’t do that very often I hate being shocked by 12 or 120 volts

  17. Russ69Runner

    Russ69Runner Well-Known Member

    Messages:
    3,571
    Likes Received:
    Joined:
    Aug 4, 2016
    Location:
    Lake Wales Fl.
    Dmartin you got something touching. Got to be a wire pinched when you put it back together or you are pinching it when pushing on the horn. Buddy. Russ.
