Routing pic's of fuel line

Fuel and Air Systems

  1. Russ69Runner

    Russ69Runner Well-Known Member

    Messages:
    3,046
    Likes Received:
    Joined:
    Aug 4, 2016
    Location:
    Lake Wales Fl.
    If any one has the routing of the fuel line on a 383 post car with out return line. Pic's would be appreciated. Looked into manuals and did not see enough. Wish I had taken more pic's when taking car apart. Have some idea but where all the clips go and through the cross member hole. Any help is appreciated just want to get here done. Russ. :thumbsup2:

  2. dmartin

    dmartin Well-Known Member

    Messages:
    733
    Likes Received:
    Joined:
    Aug 30, 2013
    Location:
    Georgia
    Russ there should be some 1/4” holes in various places all along the passenger side then a 3/4” hole through the frame rail cause the brake line clips go on the drive side

    Russ69Runner likes this.
  3. 69hemibeep

    69hemibeep Sponge Bob Square Wheels

    Messages:
    20,357
    Likes Received:
    Joined:
    Sep 10, 2008
    Location:
    AZ Desert,
    I can show you mine with return line which is the same for a nominal fee lol

  4. quikbird

    quikbird Well-Known Member

    Messages:
    2,426
    Likes Received:
    Joined:
    Mar 1, 2014
    Location:
    columbus, ohio
    Comes out of tank and crosses under the frame rail and then up to front of the car.

    Russ69Runner likes this.
  5. Russ69Runner

    Russ69Runner Well-Known Member

    Messages:
    3,046
    Likes Received:
    Joined:
    Aug 4, 2016
    Location:
    Lake Wales Fl.
    Thanks Dmartin . Yes I see the holes and knew it went thorough the frame rail. Looks like I have more clips than holes. Just want to get it rite the first time. Russ. Wish I had taken more pic's when taking it apart.

  6. Russ69Runner

    Russ69Runner Well-Known Member

    Messages:
    3,046
    Likes Received:
    Joined:
    Aug 4, 2016
    Location:
    Lake Wales Fl.
    Ok I get the joke Bob. Taped out on money my lawyer is getting it all. :lol: so how much is the ransom payment. Yes I could omit the return line. Any help would be appreciated.

    Last edited: Aug 11, 2019
  7. Russ69Runner

    Russ69Runner Well-Known Member

    Messages:
    3,046
    Likes Received:
    Joined:
    Aug 4, 2016
    Location:
    Lake Wales Fl.
    Ok quickbird. I bought pre. bent line but the way they stuck it into the box kind of look's funny. Just figured someone might have pic's of the routing. Want to do it once. Seems to be more clips than holes in the inner rocker. Russ.

  8. Basketcase

    Basketcase Keeper of the Green

    Messages:
    14,307
    Likes Received:
    Joined:
    Sep 10, 2008
    about 2 feet of rubber gas line to the antifreeze jug zip tied to the rad support......

  9. 69hemibeep

    69hemibeep Sponge Bob Square Wheels

    Messages:
    20,357
    Likes Received:
    Joined:
    Sep 10, 2008
    Location:
    AZ Desert,

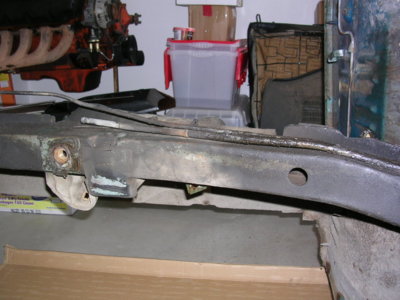

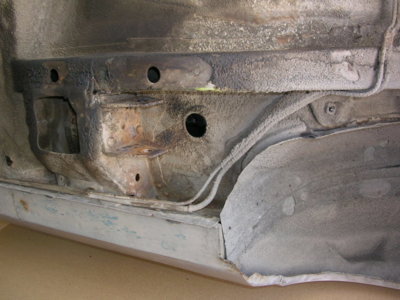

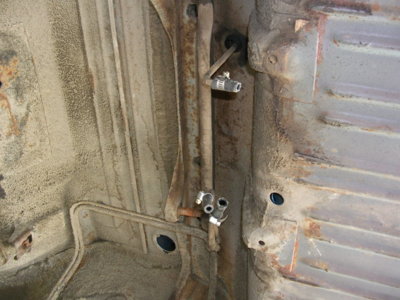

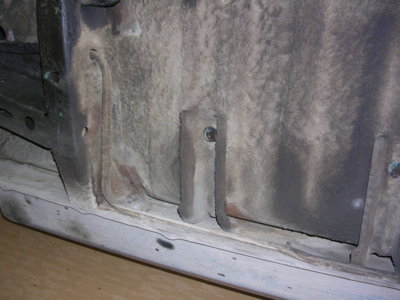

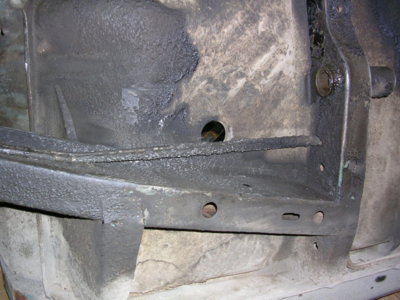

    Did you get what I call nails for under the rocker panel? OK back to front and disrega roadrunner restoration 348.jpg roadrunner restoration 349.jpg roadrunner restoration 350.jpg roadrunner restoration 351.jpg roadrunner restoration 352.jpg rd the hemi return line

  10. Russ69Runner

    Russ69Runner Well-Known Member

    Messages:
    3,046
    Likes Received:
    Joined:
    Aug 4, 2016
    Location:
    Lake Wales Fl.
    I got all the clips from classic and a couple of u straps with screw's. The stainless one has me stumped but think it will fall in place as I go. Thank you for the pic's. I seems all the funky bends go to the gas tank and the front dose not have that many bend's. Well putting it in and checking it out. Mad that they bent it to put it into the box but got it pretty well straighten out. Now I guess you will be on my Christmas list. Bob. :thumbsup2:

  11. Russ69Runner

    Russ69Runner Well-Known Member

    Messages:
    3,046
    Likes Received:
    Joined:
    Aug 4, 2016
    Location:
    Lake Wales Fl.
    Well I got the fuel line in It went pretty smooth. Used all the clips in the bag so must have done ok the only one was the strap with the screw so put it up front. Where the fuel line connects to the fuel pump. That is to the rubber line to the fuel pump. Thanks Russ. :kartman: now time for a beer to celebrate. :drinks:
