Whew. Electrical issues.

Russ Hood

Well-Known Member
Joined
Jul 23, 2020
Messages
205
Reaction score
182
Location
TN
Car wouldn't start. Key or anything it wouldn't start or turn over. I changed the alternator to a new one and put a new fusible link. I took the old fusible link off and it was in bad shape. I pulled the old fusible link out and broke the bulkhead outside piece.

Now when I put the positive cable on the starter kicks in and the starter will not stop turning.

Any suggestions?


Rumrunner

Well-Known Member
Joined
Mar 27, 2019
Messages
86
Reaction score
59
Location
Manteca CA
Solenoid??
I had a Van a long time ago with a seperate starter and solenoid. Sometimes it wouldn't turn at all and one time the starter stuck on until it burned out the starter motor. (Of course, that time my wife was had it in the parking lot at the store.) I replaced the soleniod three times in that van.


V.R.D

Well-Known Member
Joined
Oct 27, 2020
Messages
196
Reaction score
195
Location
florida
did you fix the bulk head connector and wires from the inside of bulk ?

if i remember the picture you posted it was melted bad and needed replaced and wires repaired ?


ACME A12

Plaid Sport Coat Wearing Moderator
Staff member
Joined
Nov 4, 2008
Messages
13,584
Reaction score
674
Location
New Port Richey, FL

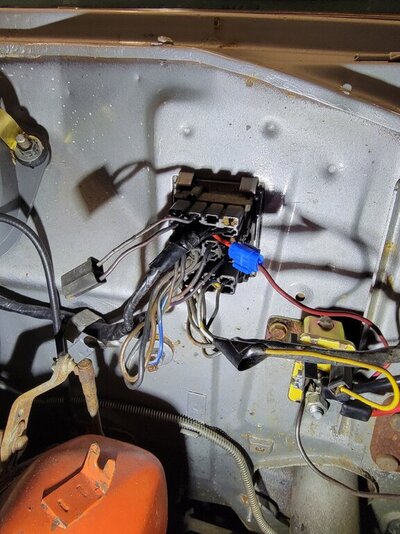

You broke the bulkhead connector for the engine side of the wiring harness at the firewall? What did you do to repair this? What condition was/is the bulkhead connector in? That fusible link runs from the starter relay to the bulkhead connector. Check all of that including your connections at the relay. Your problem is probably right there between the relay and the bulkhead connector since you're energizing the starter by just connecting the battery terminal.


Russ Hood

Well-Known Member
Joined
Jul 23, 2020
Messages
205
Reaction score
182
Location
TN
You broke the bulkhead connector for the engine side of the wiring harness at the firewall? What did you do to repair this? What condition was/is the bulkhead connector in? That fusible link runs from the starter relay to the bulkhead connector. Check all of that including your connections at the relay. Your problem is probably right there between the relay and the bulkhead connector since you're energizing the starter by just connecting the battery terminal.



V.R.D

Well-Known Member
Joined
Oct 27, 2020
Messages
196
Reaction score
195
Location
florida
get new male ends for the interior side of the harness and the correct crimp tool not the butt connector pliers.


Russ Hood

Well-Known Member
Joined
Jul 23, 2020
Messages
205
Reaction score
182
Location
TN
get new male ends for the interior side of the harness and the correct crimp tool not the butt connector pliers.
Where is the best place to get ends and crimp tool? I have a really good crimp tool I use for the race car.


MoparDan

Well-Known Member
Joined
Mar 15, 2021
Messages
206
Reaction score
213
Location
Stuarts Draft Virginia.
Hey Russ, If the starter is running when you hook up the battery, you have a short or bad ignition switch. I've attached the roadrunner wiring diagram(s) I would print them out, tape them together and get out the multi-meter. I know this is a 70 diagram, but the 68-70 are very similar.

Dan


Attachments

  • 70 Plymouth Wiring Diagram.pdf
    205.5 KB · Views: 2
